Summary of Track Laying Template

Track laying templates are tools used in model railroading to help accurately position and lay model train tracks.

Here's what they do:

Primary Functions:

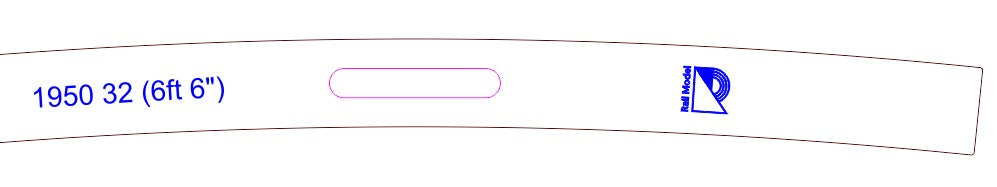

Curve Radii Guide — Templates show the exact curve radius for each common size (e.g., 9", 11", 15", 18", 22" for HO scale), ensuring smooth, consistent curves that match your track sections

Turnout Positioning — They mark the precise location and angle where turnouts (switches/points) should be placed, including the frog angle and overall footprint

Spacing Standards — Templates indicate proper track centerline spacing for parallel tracks, maintaining correct clearances between lines

S-Curve Transitions— Many templates include reverse curve sections to help plan smooth S-curves that won't cause derailments

How They're Used:

1. Place the template on your baseboard (plywood, foam, or cork roadbed)

2. Trace or mark the centerlines for curves and turnouts

3. Use the markings to align sectional track pieces or bend flextrack accurately

4. Check clearances before permanently fixing track down

Types Available:

Generic templates — Radius curves and common turnout angles for a scale (N, HO, O, etc.)

Manufacturer-specific

3-point curve tools— For custom-radius curves using flextrack

Summary:

They essentially eliminate guesswork, prevent track geometry errors that cause derailments, and make planning complex layouts on paper or benchwork much more precise.
